If you prefer to ride around with your e-bike at night, you can quickly light up the darkness with the detachable ML-Light Set CONNECT 100 Lux lighting set.

The optionally available CONNECT version (e-bike) of the MonkeyLink Interface Bike establishes the connection between the optional bracket and the light – fast, simple and intuitive. This can turn a sporty e-MTB into a bike suitable for everyday use.

The ML-Light Set CONNECT 100 Lux lighting set is attached to your e-bike in no time with a self-locking, quick connection. If your bike is already equipped with the MonkeyLink system from the factory, you can choose the matching CONNECT headlight based on the required lighting power.

The ML-Light Front Connect headlight impresses with up to 100 lux of illumination and, with the ML-Light Rear Sport Connect rear light, it forms a complete lighting set for your e-bike, which is supplied with energy from the bicycle battery and can be controlled via the display. An additional battery is not required.

Details:
• Powerful MonkeyLink system lighting set for e-bikes
• Quick attachment to MonkeyLink brackets
• Self-locking magnetic system
• Built-in e-bike display controls
• Internal power supply via e-bike battery
• StVZO-approved for all types of bikes

The MonkeyLink system allows you to mount bike accessories like lights or mudguards to your bike with a flick of the wrist, thanks to a universal mount. The system is specifically designed for bikes without their own power supply (RECHARGE) or e-bikes (CONNECT). Magnetic connections allow for easy installation. One connection – countless possibilities.

Attention:
As some bike manufacturers fit their bikes with the MonkeyLink system as a standard, the light kit comes without a mounting kit. The MonkeyLight CONNECT requires the MonkeyLink Interface Bike CONNECT (prod. code 2268402) as an interface for the power supply, as well as a suitable holder. It can either be mounted with a handlebar clamp (prod. code 2268392) or stem clamp (such as prod. code 2268383). For the ML Rear Light Sport CONNECT you need a MonkeyLink saddle clamp (prod. code 2268388 or 2268389) and the MonkeyLink Interface Bike CONNECT for drives from Brose, Shimano/Suntour (optional) or Bosch (prod. code 2268402).

Specs front light:
• Material: plastic
• Installation: Monkeylink mount
• Power supply: from 6 to 13.5 volts DC (DC, suitable for e-bikes*)
• Lamp: LED
• Light output: 100 lux
• Lateral visibility: yes
• Light modes: ON / OFF (via e-bike display)
• Waterproof rating: IPX4
• Dimensions: approx. 70 mm x 40 mm x 45 mm
• Weight: approx. 79 g

Specs rear light:
• Material: plastic
• Installation: Monkeylink mount
• Power supply: from 6 to 12 volts (DC, suitable for e-bikes*)
• Lamp: LED
• Lateral beam angle: approx. 270°
• Light modes: 1
• Waterproof rating: IPX4
• Dimensions: approx. 52 mm x 41 mm x 41 mm
• Weight: approx. 24 g

*Tip:
The lighting set is compatible with a DC power supply.
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer.
NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!

In the box:

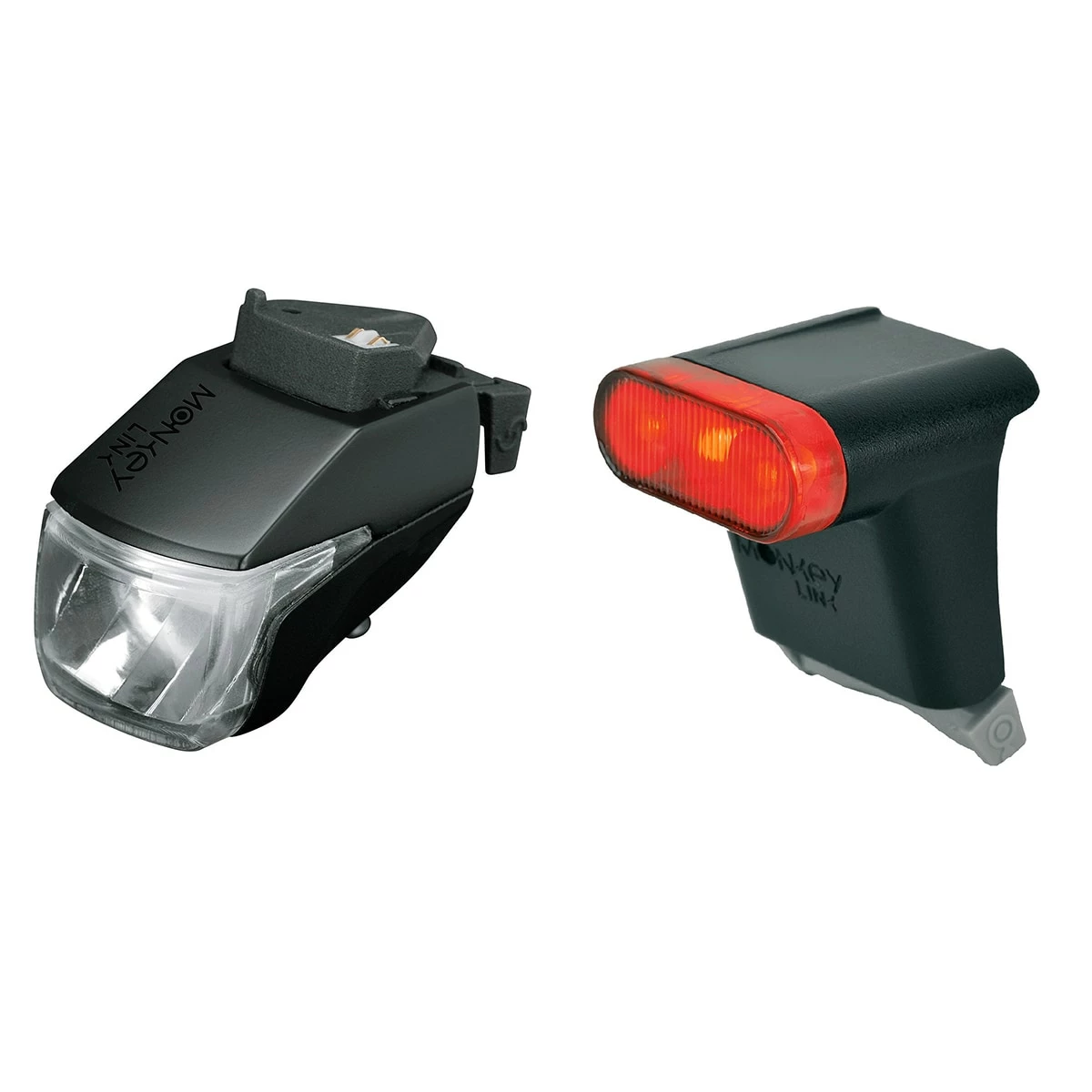

MonkeyLink ML-Light Set CONNECT 100 Lux lighting set for e-bikes consisting of:
• 1 ML-Light Front CONNECT 100 Lux Headlight (prod. code 2268366)
• 1 ML Rear Light Sport CONNECT (prod. code 2278652)
Attention: Comes WITHOUT connector and bracket (optional).

Tip:
If you ride without lighting during the day, compatible front and rear reflectors for the Interface Bike CONNECT will keep off dirt and improve your visibility (product code: 2268390/2268391).
